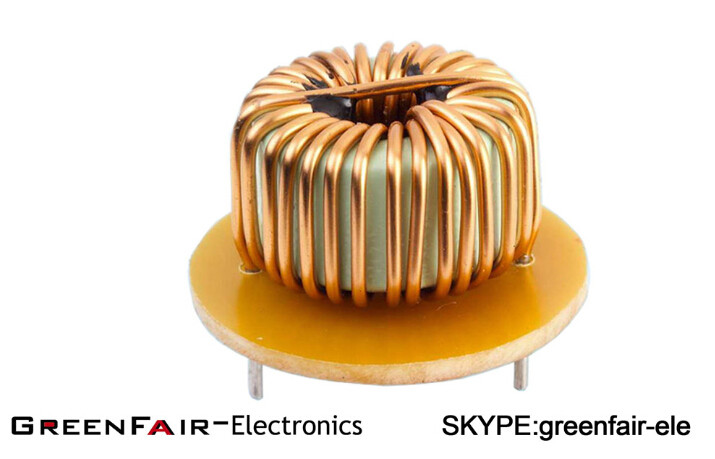

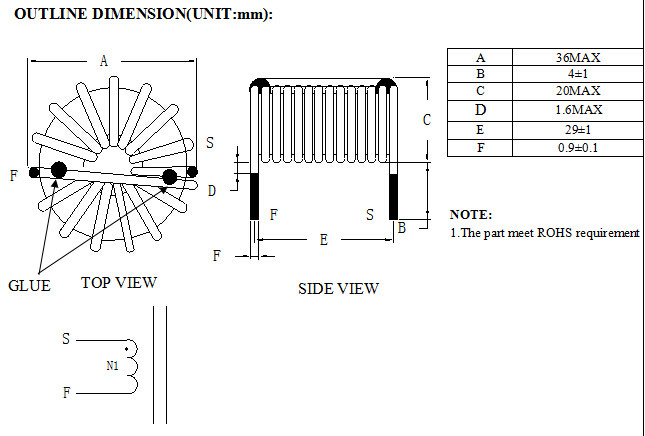

Horizontal KST106-26 Coil filter TOROID choke by 60 turns 0.9mm copper wire with Excellent EMI efficiency

Feature for Custom Choke Coil Inductor for Electronic Device
High current, horizontal or vertical mount
High saturation flux density
High power factor correction
Low profile and low weight
Less flux leakage and beat
Low radiation and core loss
Precise inductance
Operating temperature: -55 to 105°C
Power: 200, 250, 300 and 500W
Voltage: 100V/230, 50Hz
Inductance value is 290uH MIN at 1KHZ 1V

DCR is 100mΩ MAX
PF value: greater than 98%
Tested at 100kHz, 0.1Vrms inductance of 10%uH
DC current at which the inductance drops 10% (type) from itsvalue without current
Electrical characteristics at 25°C
Insulation: class B (130°C), class F (155°C), class H(180°C), class N (200°C) and class R (220°C)
Certifications: UL, CQC and CE
Excellent utilization of electricity, good for environmentprotection
Customized specifications are accepted

Applications:

Frequency power
UPS
EMI/RFI filters
Switching power output and smoothing circuits
Used as choke coil for high frequency SMPs
Countermeasure against spike ripples
DC/DC converters
IP and OP devices
Notebook computer
Air conditioning
Digital TV
Battery power equipment
Power supply of all types of household appliances
Switching power supplies
