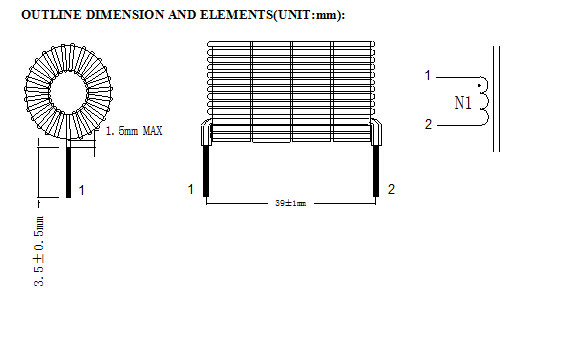

Choke toroidal coil by 4pcs T94-40 MICROMETALS core and 1PEW/2UEWφ1.1mm low DC resistance,good control on noise

Feature for Custom High Filter Choke Coil Inductor for Electronic Device

1. High Saturation materal &high efficiency
2. wide inductance range,high current capability low magnetic leakage
3. low DC resistance,good control on noise due to the toroidal constructure
4. Characteristics: Big current output, Huge power, Excellent current choking performance.
5. Various material availiable to meet different frequency requirements

Low loss
Fixed pin spacing allow easy PCB insertion.
Custom Designs Available.
Temperature Range:－40℃～＋125℃

Inductance value is 0.23mH±10%
Bifilar winding 35 turns

Hi-pot is AC1000V 5mA/3S Without break at 0.5mA 3s
RatingCurrent DC Idc (A):2.2 ~ 15
Tested at 1KHz to 100kHz, 0.0.25Vrms inductance of 10%uH
DC current at which the inductance drops 10% (type) from itsvalue without current
Electrical characteristics at 25°C
Insulation: class B (130°C), class F (155°C), class H(180°C), class N (200°C) and class R (220°C)
Certifications: UL, CQC and CE
Excellent utilization of electricity, good for environmentprotection
Customized specifications are accepted

Applications:
UPS

Lighting driver
EMI/RFI filters
Switching power output and smoothing circuits
Used as choke coil for high frequency SMPs
DC/DC,AC/AC line noise suppression
Automotive System.
Communication System.
Power supply of all types of household appliances
Switching power supplies

Competitive Advantage:
1. High grade raw material from famous supplier
2. Big quality control teams ensure good quality of every single piece of product.
3. 6S, QCC and SPC management systems ensure the quality consistence
4. Strong R. & D team

Notes:
1. Wire:130°C or150°C.
2. The above specifications for the common specifications, customers can request custom design.

General information:
It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.
Storage Temperature: -40°C to 85°C
Operating Temperature: -40°C to 125°C
Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently

* With self-heating
** Maximum wet-bulb temperature 38°C, without dewing
*** Without dewing
