    PBT Base Filter Toroidal Choke Coil 0.7mm Copper Wire Low Temperature Rise

    Ask Lasest Price
    Brand Name : Greenfair
    Model Number : common mode choke
    Certification : CE, UL, ISO14001
    • Product Details
    • Company Profile

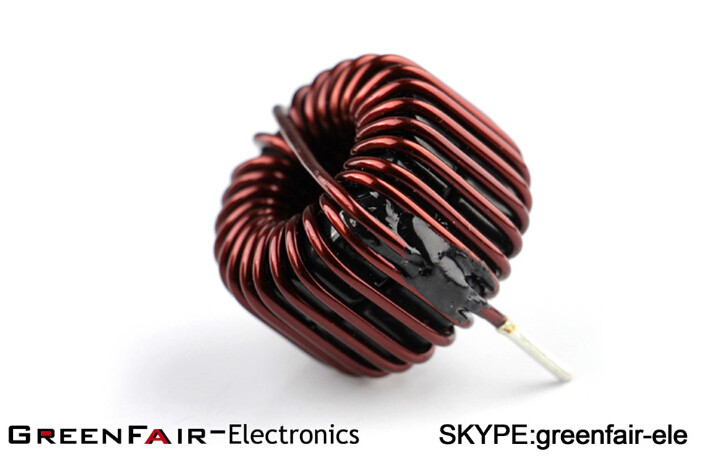

    PBT Base Filter Toroidal Choke Coil 0.7mm Copper Wire Low Temperature Rise

    Vertical T157-52 common mode choke by EIWH¢1.3mm copper wire Toroidal common-mode inductor


    Feature for Custom High Filter Choke Coil Inductor for Electronic Device

    Large output current
    Excellent clutter supperession
    Precise inductance

    Horizontal or vertical mount
    High saturation flux density
    High power factor correction
    Low profile and low weight
    Less flux leakage and beat
    Low radiation and core loss
    Operating temperature: -55 to 105°C
    Power: 200, 250, 300 and 500W
    Voltage: 100V/230, 50Hz
    Inductance range: 1 to 1000uH
    PF value: greater than 98%
    Tested at 100kHz, 0.1Vrms inductance of 10%uH
    DC current at which the inductance drops 10% (type) from itsvalue without current
    Electrical characteristics at 25°C
    Insulation: class B (130°C), class F (155°C), class H(180°C), class N (200°C) and class R (220°C)
    Certifications: UL, CQC and CE
    Excellent utilization of electricity, good for environmentprotection
    Customized specifications are accepted


    Applications:

    Frequency power
    UPS
    EMI/RFI filters
    Switching power output and smoothing circuits
    Used as choke coil for high frequency SMPs
    Countermeasure against spike ripples
    DC/DC converters
    IP and OP devices
    Notebook computer
    Air conditioning
    Digital TV
    Battery power equipment
    Power supply of all types of household appliances
    Switching power supplies


    Competitive Advantage:
    1. High grade raw material from famous supplier
    2. Big quality control teams ensure good quality of every single piece of product.
    3. 6S, QCC and SPC management systems ensure the quality consistence
    4. Strong R. & D team


    PBT Base Filter Toroidal Choke Coil 0.7mm Copper Wire Low Temperature Rise

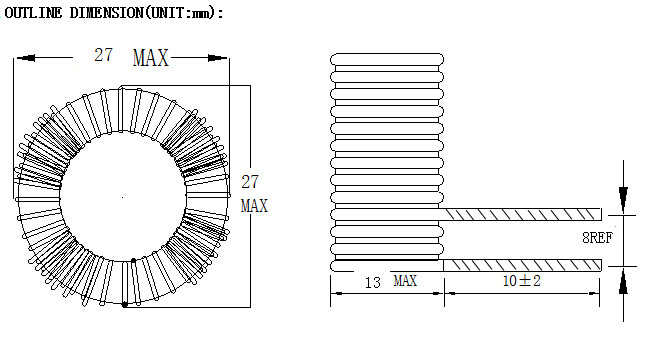

    WINDING PARAMETER:
    NO.WINDINGMATERIALS--FTURNSTAPE
    1N12UEW¢0.7mm*1P1--2120TS

    ELECTRICAL CHARACTERISTIC:
    NO.ITEMMEASURE POINTTECHNICAL DATAREMARK
    1INDUCTANCEN1860uH±15%1KHz 0.25V
    300uH MINADD LOAD 3ADC

    MATERIAL LIST:
    NO.MATERIAL NAMEMATERIAL SPEC.PROVIDERUL NO.
    1COREKST 94-26KARSON
    2WIREMW75CJiangsu dartong qingjiang M&E Co,.LtdE237377

    General information:
    It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.
    Storage Temperature: -40°C to 85°C
    Operating Temperature: -40°C to 125°C
    Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently


    OPERATING TEMPERATURE RANGE, PACKAGE QUANTITY, PRODUCT WEIGHT
    Temperature rangeHumidity rangeStandard test conditions
    Operating temperature*Storage temperatureOperating temperature**Storage temperature**Operating temperature**Storage temperature**
    ( ℃)( ℃)( % RH)( % RH)( ℃)( % RH)
    -30 to +120-40 to +8010 to +9510 to +9525 ± 1025 to +75

    * With self-heating
    ** Maximum wet-bulb temperature 38°C, without dewing
    *** Without dewing


    PBT Base Filter Toroidal Choke Coil 0.7mm Copper Wire Low Temperature Rise


    Product Tags:

    common mode coil



    power choke inductor
