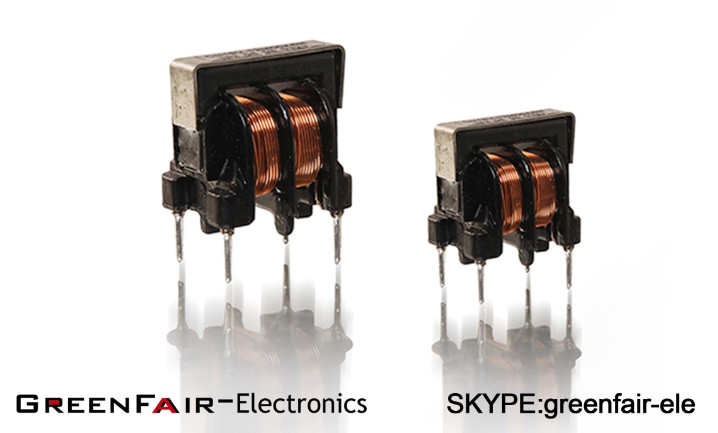

Power Filter Inductor UU9.8 - 40mH common mode choke Work Frequency 50-400KHz S.M.T.type High realiability​

Features
1. Monolithic inorganic material construction.
2. Closed magnetic circuit avoid crosstalk.
3. S.M.T.type .
4. Suitable for flow and reflow solding .
5. Shapes and dimensions flow soldering .
6. High realiability.

Characteristics:

• Good DC saturation characteristics
• Minimizes magnetic leakage and core groan by using toroidal core
• Effective on noise absorption
• Rated current: up to 1.0 A
• Operating temperature: -20 to 100 degrees Celsius
• Various cores and bobbins available
• Inductance range: 1uH to 10,000uH

Operating temperature: -55 to 105°C
Power: 200, 250, 300 and 500W
Voltage: 100V/230, 50Hz
Inductance value is 40mH MIN at 1KHz 0.25V

PF value: greater than 98%
Tested at 100kHz, 0.1Vrms inductance of 10%uH
DC current at which the inductance drops 10% (type) from itsvalue without current
Electrical characteristics at 25°C
Insulation: class B (130°C), class F (155°C), class H(180°C), class N (200°C) and class R (220°C)
Certifications: UL, CQC and CE
Excellent utilization of electricity, good for environment protection
Customized specifications are accepted

Applications
1. Power supply for VTR,OA equipment
2. Digital camera,LCD television set
3. Notebook PC,portable communication
4. Equipments,DC/DC converters,etc

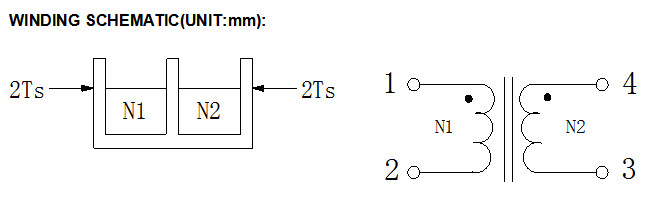

Notes:
1. Wire:130°C or150°C.
2. The above specifications for the common specifications, customers can request custom design.

General information:
It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.
Storage Temperature: -40°C to 85°C
Operating Temperature: -40°C to 125°C
Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently

* With self-heating
** Maximum wet-bulb temperature 38°C, without dewing
*** Without dewing
