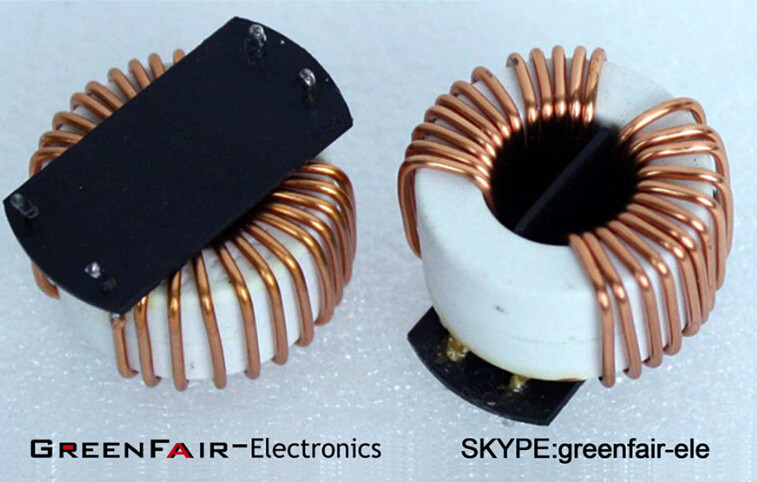

Horizontal big current common mode choke with 2 cores and 2 windings, 2.0mm wire bifilar winding

Feature for Custom High Current Loading Filter Choke Coil Inductor for Electronic Device
1. Low Flux Leakage
2. High Current Loading
3. Excellent Filtration efficiency
4. Excellent EMI efficiency
5. Made in a lot of sizes and shapes according to customer requirements

6. Toroidal common-mode inductor
7. For SMPS application
8. RoHS compatible (Pb free) versions available
9. Good frequency characteristic
10. With high impedance

Applications:

widely applied in various switching power suppliers and high frequency electronic equipmentNoise
1. Power factor control choke coil
2. EMI/RFI filter used in switching power supplies
3. Electronic Device
4. UPS
5. TV game, Monitor, Audio, VCD, DCD, Radio cassette player
6. Car recharger
7. The noise rejection
8. Induction cooker,etc
9. Compact fluorescent lamp

General information:
It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.
Storage Temperature: -40°C to 85°C
Operating Temperature: -40°C to 125°C
Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently

* With self-heating
** Maximum wet-bulb temperature 38°C, without dewing
*** Without dewing
