Large current Low-resistance DR core Radial inductor DR8*10 Small, medium and large quantities available

DR radial inductor

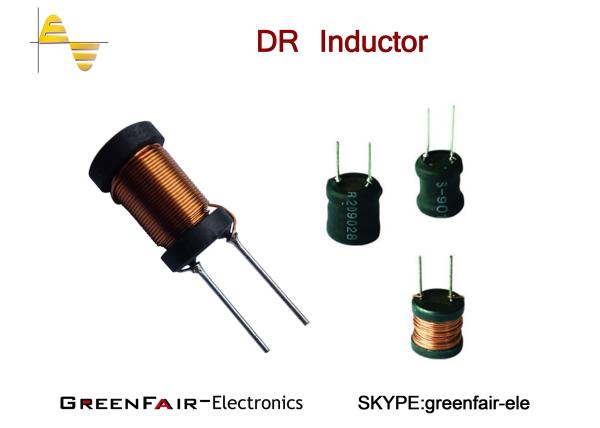

The DR inductor is a small electric component which occupies a small area on PCB. The four models of our DR inductor mainly differ in appearance. The two pins of the PK model are on the same side, while the VC model put the pins on separated sides. Different models may have different overall sizes, pin lengths, pin diameters, or pin intervals. Our production process is very precise so that the difference in pin length is less than 2mm, and the difference in pin intervals is less than 0.3mm.

Feature

large current DR core power line choke coils

AC line filters
Air core coil
Common mode choke coils
Radial choke inductors
Shielded radial choke
Toroidal coil
Ferrite beads
Wide band chokes
Axial lead fixed inductors
Small, medium and large quantities available

Operating temperature: -55 to 105°C
Power: 200, 250, 300 and 500W
Voltage: 100V/230, 50Hz
Inductance value is 6uH±15% at 1KHz 0.25V

PF value: greater than 98%
Tested at 100kHz, 0.1Vrms inductance of 10%uH
DC current at which the inductance drops 10% (type) from itsvalue without current
Electrical characteristics at 25°C
Insulation: class B (130°C), class F (155°C), class H(180°C), class N (200°C) and class R (220°C)
Certifications: UL, CQC and CE
Excellent utilization of electricity, good for environment protection
Customized specifications are accepted

Applications:
EMI/RFI filters
Drivers

UPS
DC/DC converters
Battery power equipment
Power supply of all types of household appliances
Switching power supplies

Notes:
1. Wire:130°C or150°C.
2. The above specifications for the common specifications, customers can request custom design.

General information:
It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.
Storage Temperature: -40°C to 85°C
Operating Temperature: -40°C to 125°C
Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently

* With self-heating
** Maximum wet-bulb temperature 38°C, without dewing
*** Without dewing
