    Vertical Electronic Current Transformer , Ferrite Core Type High Current Transformer

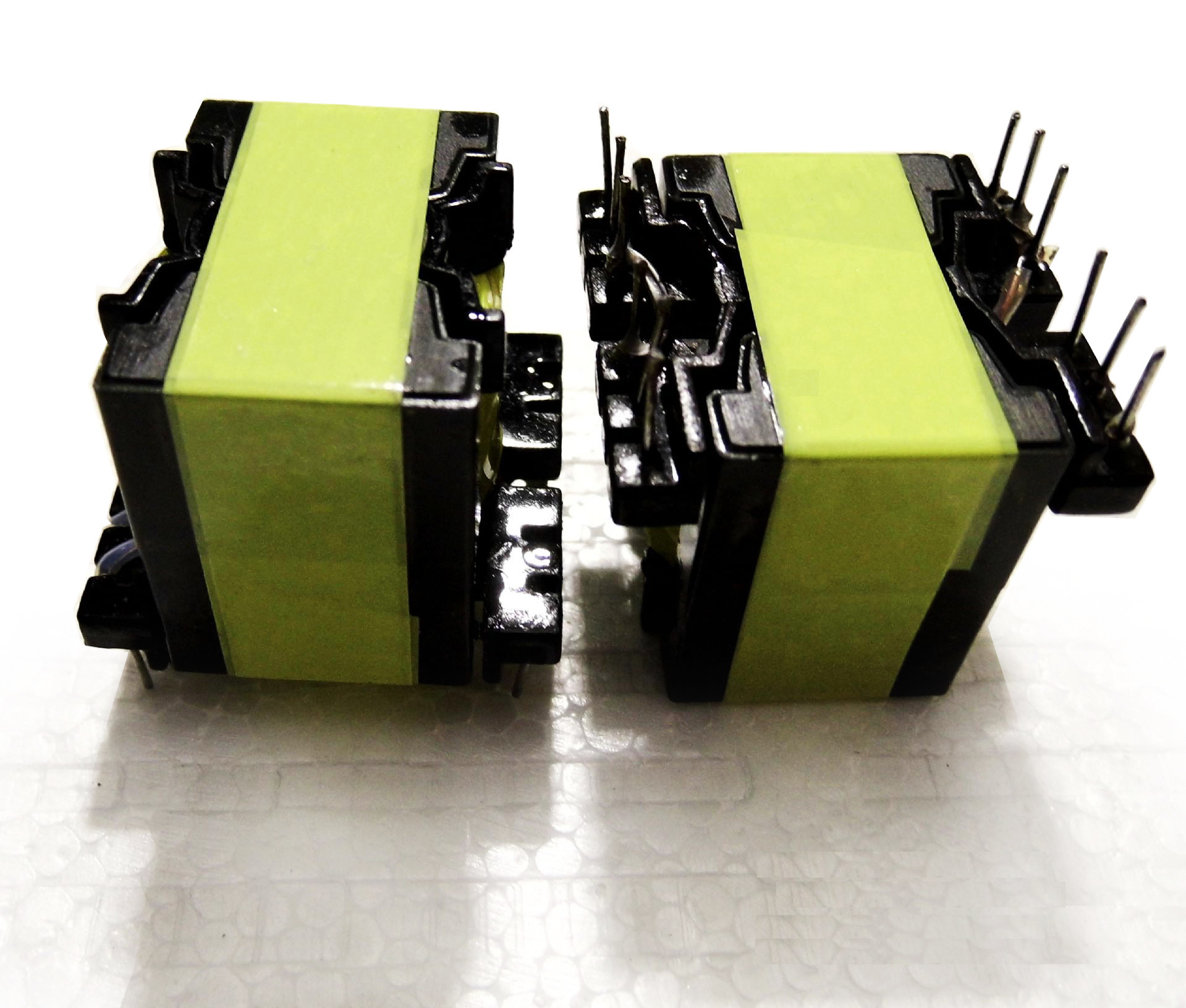

    Vertical and Horizontal PQ16 PQ20 PQ23 ferrite core type big power big current transformer for led driver


    Features:
    1. Custom designs available
    2. High efficiency of over 95%
    3. High frequency range 1KHz-1MHz
    4. High isolation strength
    5. High-temperature resistant
    6. Operating temperature -40°C to +125°C
    7. Power range 10w-500w

    PQ Transformer
    Quick Details
    Place of Origin: Guangdong, China (Mainland)
    Brand Name: Greenfair, GFE, GE
    Model Number: PQ16/12, PQ20/7, PQ20/10, PQ20/16, PQ20/20, PQ23/17, PQ26/15, PQ26/20, PQ26/25, PQ27/25, PQ32/11, PQ32/20, PQ32/25, PQ32/30, PQ33/12, PQ35/9, PQ35/25, PQ38/11, PQ38/12, PQ40/20, PQ40/40, PQ50/50.
    Usage: High Frequency
    Phase: Single
    Coil Structure: Toroidal
    Coil Number: Autotransformer
    color: yellow
    size: horizontal
    type: EE,EI ,EC,PQ,EFD,EPC,UU,R,RH,DR, etc
    Core grade: PC40, 3C90,TP4
    Bobbin material: Phenolic

    Application:
    Power supply Driver
    Lighting appliance
    Communication equipment
    LCD Power Supply

    Converter and inverter

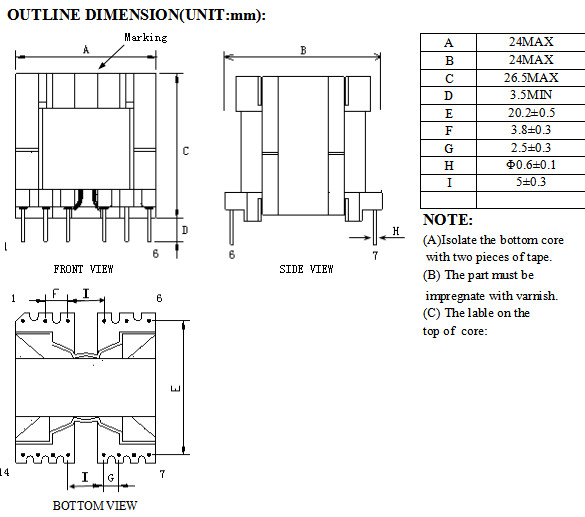

    Vertical Electronic Current Transformer , Ferrite Core Type High Current Transformer


    Vertical Electronic Current Transformer , Ferrite Core Type High Current Transformer

    WINDING PARAMETER:
    WINDING ORDERMATERIAL SPEC.MARGINAL TAPETUBE TYPES--FTURNSWINDING
    FASHION
    ISOLATION BETWEEN WINDING
    BOTTOMTOPSF
    N11UEWFΦ0.6*2P2mm2mmTFLTFL3---45SPACED1mil*12mm*3TS
    N21UEWFΦ0.1*1P2mm2mmTFLTFL7---14250SPACED1mil*12mm*3TS

    WINDING PARAMETER:
    WINDING ORDERMATERIAL SPEC.MARGINAL TAPETUBE TYPES--FTURNSWINDING
    FASHION
    ISOLATION BETWEEN WINDING
    BOTTOMTOPSF
    N11UEWFΦ0.6*2P2mm2mmTFLTFL3---45SPACED1mil*12mm*3TS
    N21UEWFΦ0.1*1P2mm2mmTFLTFL7---14250SPACED1mil*12mm*3TS

    MATERIAL LIST:
    NO.MATERIAL NAMEMATERIAL SPEC.PROVIDERUL·NO
    1COREPQ2020 TP4/3C90TDG/FERROXCUBE OR EQUIVALENT
    2BOBBINPHENOLICCHANG CHUN OR EQUIVALENTE59481
    3WIREMW-79CDATONG OR EQUIVALENTE237377
    4TUBETFL 150V 200℃WOER OR EQUIVALENTE203950
    5ISOLATION TAPECT-280 130℃YA HUA OR EQUIVALENTE165111
    6VARNISH8562/AHANG CHENG OR EQUIVALENTE200154

    General information:
    It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.
    Storage Temperature: -40°C to 85°C
    Operating Temperature: -40°C to 125°C
    Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently

    OPERATING TEMPERATURE RANGE, PACKAGE QUANTITY, PRODUCT WEIGHT
    Temperature rangeHumidity rangeStandard test conditions
    Operating temperature*Storage temperatureOperating temperature**Storage temperature**Operating temperature**Storage temperature**
    ( ℃)( ℃)( % RH)( % RH)( ℃)( % RH)
    -30 to +120-40 to +8010 to +9510 to +9525 ± 1025 to +75

    * With self-heating
    ** Maximum wet-bulb temperature 38°C, without dewing
    *** Without dewing
