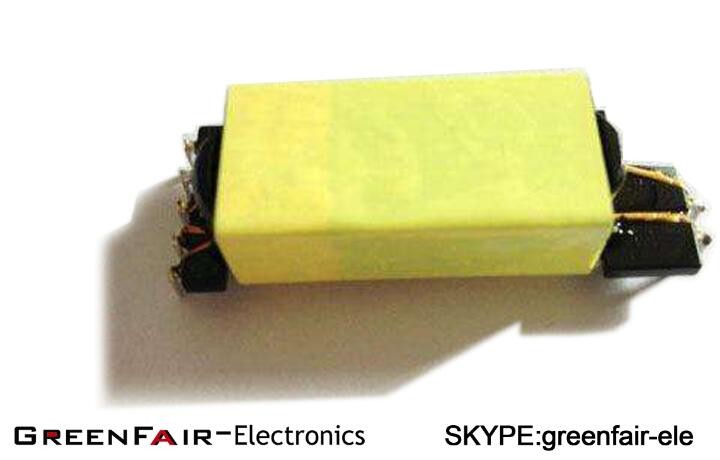

EDR series EDR28 transformer most popular design for led tube lighting , transformers never overheat

Features

1. Custom design available

2. High reliability

3. Low height and big power, suitable for led tube

4. High frequency and high current

5. We can offer design if needed

>>> Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: Greenfair, GFE, GE
Model Number: EDR20,22,25,26,28,32,35,38,39

1, DCR within the given tolerance: We always use the AWG wires in order to assure that the DCR is within the given tolerance.
2, Low magnetizing current: The smoothness of the winding, appropriate lamination of core sheets and also the material quality ensures the magnetizing current will never exceed the allowed limit during unloaded operation.
3, High efficiency: We always choose thin and silver-colored core sheets in order to keep the efficiency high.
4, The transformers never overheat: Appropriate bobbin size, the diameter of the wire we use and precise alignment of the individual winding loops keep the component from overheating.
5, 100% Hi-Pot Testing: Every transformer we produce has to pass the Hi-Pot test and if necessary it can sustain 3,700 V coil to coil voltage and 1,500 V coil to core voltage.

General information:
It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.
Storage Temperature: -40°C to 85°C
Operating Temperature: -40°C to 125°C
Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently

* With self-heating

** Maximum wet-bulb temperature 38°C, without dewing

*** Without dewing

Greenfair Electronics is one of the key electric enterprises in Shenzhen., professional in design and manufacture High Frequency Transformer, Power Transformer, Inductors, EMI equipment, SMT Magnetic Components, Network and Telecommunication Transformers, Automotive and Telecommunication Applications, etc., provide PCB design, electric circuit design. Moreover, besides standard products, we also provide an extensive range of customization services in order to cater for your special orders.

We have about 3800M production area with annual output up to 50,000,000pcs. And we have a labor force which has grown to more than 400, and own a professional group more than 30 members who hammer at technology and engineering craft.


We earned international approval from CE, UL, CQC, CSA, VDE and awarded the ISO9001:2000 Quality Management Certificate, Also, our company is well equipped with complete equipment and advanced assembly lines that have a enviable quality control and assurance system. We strongly believe that we could provide high quality produces and the best customer satisfaction service as well as the best competitive price to our customers at any time.

The key of our success is quality and customer service. We have a highly efficient team to deal with inquiries from customers. We are experienced in selling goods to Europe and Asia and enjoy a good reputation among clients.

We are seeking sincere cooperation with all interested companies.
