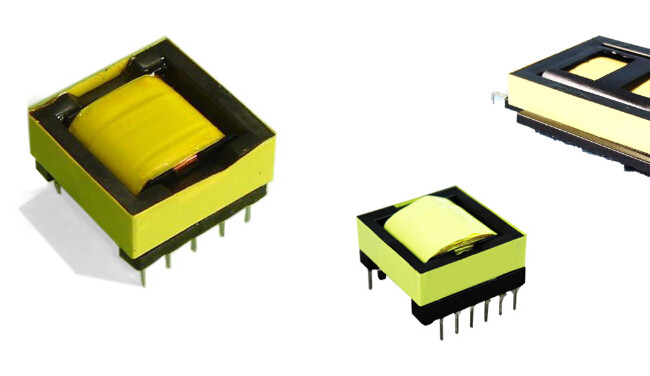

EFD Series high frequency transformer with low height and high power​

>>> Features

1. IEC-spacing compatible

2. Low leakage inductance designs

3. Through hole and surface mount available

4. Low building height / profile design

5. High thoughput power-density

6. Custom design available

>>> Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: Greenfair, GFE, GE
Model Number: EFD11, EFD12, EFD13, EFD15, EFD16, EFD17, EFD18, EFD20, EFD21, EFD25, EFD30, EFD32, EFD35,EFD36, EFD40.
Usage: High Frequency
Phase: Single
Coil Structure: Toroidal
Coil Number: Autotransformer
Color: Yellow
Size: Horizontal
Type: EE,EI ,EC,PQ,EFD,EPC,UU,R,RH,DR, etc
Core grade: PC40, 3C90,TP4
Bobbin material: Phenolic

>>> Packaging & Delivery
Packaging Details: carton box, plastic pallet, package testing dropping before shipping
Delivery Time: 3-4weeks

General information:

It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.
Storage Temperature: -40°C to 85°C
Operating Temperature: -40°C to 125°C
Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently

* With self-heating

** Maximum wet-bulb temperature 38°C, without dewing

***Without dewing

Greenfair Electronics is one of the key electric enterprises in Shenzhen., professional in design and manufacture High Frequency Transformer, Power Transformer, Inductors, EMI equipment, SMT Magnetic Components, Network and Telecommunication Transformers, Automotive and Telecommunication Applications, etc., provide PCB design, electric circuit design. Moreover, besides standard products, we also provide an extensive range of customization services in order to cater for your special orders.

We have about 3800M production area with annual output up to 50,000,000pcs. And we have a labor force which has grown to more than 400, and own a professional group more than 30 members who hammer at technology and engineering craft.


We earned international approval from CE, UL, CQC, CSA, VDE and awarded the ISO9001:2000 Quality Management Certificate, Also, our company is well equipped with complete equipment and advanced assembly lines that have a enviable quality control and assurance system. We strongly believe that we could provide high quality produces and the best customer satisfaction service as well as the best competitive price to our customers at any time.

The key of our success is quality and customer service. We have a highly efficient team to deal with inquiries from customers. We are experienced in selling goods to Europe and Asia and enjoy a good reputation among clients.

We are seeking sincere cooperation with all interested companies.
