EP10 EP6 EP series transformer mini small size transformer for led
driver EP7 power inductor filter
Features:
1. Custom designs available
2. High efficiency of over 95%
3. High frequency range 1KHz-1MHz
4. High isolation strength
5. High-temperature resistant
6. Operating temperature -40°C to +125°C
7. Power range 10w-500w

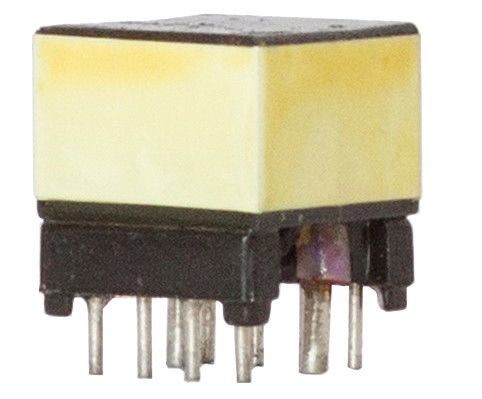

EP Transformer
Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: Greenfair, GFE, GE
Model Number: EP6/6, EP6/6A, EP7/8, EP9/7, EP9/7A, EP9/10, EP10/9,
EP12/10, EP13/13, EP15/10, EP18/17, EP24/21, EP6/6, EP9/7, EP12/10,
EP13/13, EP18/17, EP24/21.
Usage: High Frequency
Phase: Single
Coil Structure: Toroidal
Coil Number: Autotransformer
color: yellow
size: horizontal
type: EE,EI ,EC,PQ,EFD,EPC,UU,R,RH,DR, etc
Core grade: PC40, 3C90,TP4
Bobbin material: Phenolic
Application:
Power supply Driver
Lighting appliance
Communication equipment
LCD Power Supply
Converter and inverter
| WINDING PARAMETER: |
| WINDING ORDER | MATERIAL SPEC. | TERMINAL | TURNS | WINDING
FASHION | ISOLATION BETWEEN WINDING |
| S | F | thick(mil) | wide(mm) | layer |
| 1 | N1 | 2UEWΦ0.08mm*1P | 5 | 6 | 110 | closed | 1 | 6 | 2 |
|
| 2 | N2 | 2UEWΦ0.1mm*1P | 1 | 4 | 240 | closed | 1 | 6 | 2 |
|
| 3 | N3 | 2UEWΦ0.08mm*1P | 8 | 7 | 110 | closed | 1 | 6 | 2 |
|
| ELECTRICAL CHARACTERISTIC: |
| NO. | ITEM | MEASURE POINT | TECHNICAL DATA | REMARK |
| 1 | INDUCTANCE | L(1--4) | 40.3mHMIN | 10KHz,0.1V |
| 2 | INDUCTANCE | L(5--6/7--8) | 12.1mHMIN | 10KHz,0.1V |
| 3 | HI-POT | COIL----COIL | 1.5KV AC | 1mA 60S |
| 4 | HI-POT | COIL----CORE | 1.0KV AC | 1mA 60S |
| MATERIAL LIST: |
| NO. | MATERIAL NAME | MATERIAL SPEC. | PROVIDER | UL NO. |
| 1 | CORE | CORE:EP10(EP10/5/7) TP4 | TDG | |
| 2 | BOBBIN | PHENOLIC | CHANG CHUN or equivalent | E59481 |
| 3 | WIRE | 2UEW 130℃ | TAT-1 or equivalent | E85640 |
| 4 | ISULATION TAPE | CT-280 130℃ | YA HUA or equivalent | E165111 |
| 5 | VARNISH | 8562(a) | HANG CHEUNG or equivalent | E200154 |
| 6 | EPOXY | 2006A/B | EATTO or equivalent | |
General information:
It is recommended that the temperature of the part does not exceed
+125°C under worst case conditions.
Storage Temperature: -40°C to 85°C
Operating Temperature: -40°C to 125°C
Test conditions of Electrical Properties: 20°C, 33% RH if not
specified differently
| OPERATING TEMPERATURE RANGE, PACKAGE QUANTITY, PRODUCT WEIGHT |
| Temperature range | Humidity range | Standard test conditions |
| Operating temperature* | Storage temperature | Operating temperature** | Storage temperature** | Operating temperature** | Storage temperature** |
| ( ℃) | ( ℃) | ( % RH) | ( % RH) | ( ℃) | ( % RH) |
| -30 to +120 | -40 to +80 | 10 to +95 | 10 to +95 | 25 ± 10 | 25 to +75 |
* With self-heating
** Maximum wet-bulb temperature 38°C, without dewing
*** Without dewing
